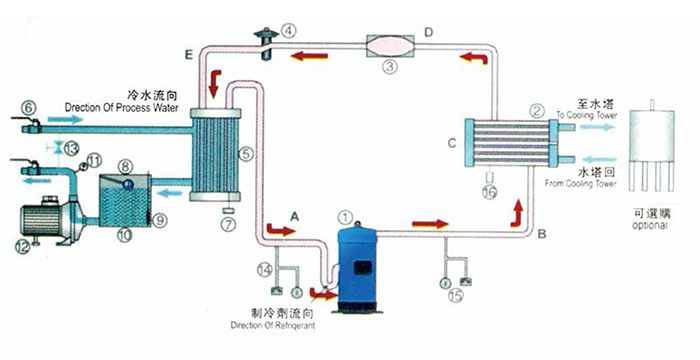

The TIC-W series of water-cooled water chillers use a single closed-loop designfor pressurised refrigerant. All models are equipped with compressor and motor verload protection, phase shortage and reversal alarms, anti-freeze thermostat,pressure gauges, etc. They feature excellent performance and a long lifespan.The series of working flow is based on the basic principle of heat exchange. It is applicable to the industry that requires flow of precisely controlled chilled water,and considered as indispensable equipment for modern industry.
冷卻溫度范圍 5°C- 35C;
不銹鋼保溫水箱，防結冰保護裝置 ;
制冷劑采用 R22,
制冷效果好 ;
冷凍回路采用高、低壓開關控制 ;
壓縮機及泵浦均有過載保護 ;
殼管式冷凝器，導熱快，散熱效果佳 ;
殼管式冷凝器及蒸發器導熱及熱交換快，散熱及制冷效果好。
Cooling capacity from7C to 35C.
Stainless insulated water tank and anti -freeze thermostat.
R22 refrigerant used as standard for efficient cooling.
Refrigeration loop controlled by high and low pressure switches.
Compressor and pump overload relays.
Tube-in-shell condenser design for quick heat transfer and excellent heat radiation.
Tube-in-shell evaporator for excellent cooling
注：
1) 制冷能力是依據出水口溫度 12C、環境溫度 30C 下測得 ;
2) 此泵浦為內銷及外銷東南亞標配，客戶可依需求換裝中壓泵浦 ( 用 P 表示 ; 例如 : TIC- -5W-P)，也可換裝高壓泵浦 ( 用 HP 表示 ; 例如 :
TIC 5W-HP );
3) 機器電壓可按客戶要求特殊訂購。
Note：
1)Refrigeration capacity is tested under the condition that cold water outlet temperature is at 12° and ambient temperature is at 30°.
2)This pump is used as standard either for domestic of Southeast Asia; medium(Model denotes" P”,such as TIC-5W-P) or high pressure pump(Model
denotes" HP”,such as TIC-5W-HP) are optional for installation on customer' s demands.
3)Demands on special voltage of power supply could be satisfied.
|
