TIC-A 系列風冷式冷水機采用單級蒸汽壓縮回路，并具有壓縮機過載保護、泵浦過載保護、逆相缺相警示、防止結水保護、高
低壓力保護等裝置，機器性能穩定，壽命長。 可快速降溫， 溫控穩定，滿足客戶要求。 此系列產品主要應用冷熱交換的原理
進行工作。適用于現代工業中的冷卻領域，且不受環境溫度的影響，是不可或缺的配置設備。
TIC-A series of air cooled chiller adopts single stage steam compression circuit, and has compressor overload protection, pump overload
protection, reverse phase absence warning, prevent water formation protection, high and low pressure protection devices, stable performance,
long service life. Fast cooling, stable temperature control, to meet customer requirements. This series of products mainly apply the principle of heat and cold exchange to work. Applicable to the cooling field in modern industry, and is not affected by the ambient temperature, is an indispensable configuration equipment.
冷卻溫度范圍 5C- 35C;
不銹鋼保溫水箱，防結冰保護裝置 ;
制冷劑采用 R22，制冷效果好 ;
冷凍回路采用高、低壓開關控制 ;
壓縮機及泵浦均有過載保護 ;
采用邦普電腦溫控器精度達 ±0.1C;
操作方便，結構簡單，易于維修 ;
低壓泵浦為標準配備，另可選用中壓或高壓泵浦 ;
可選增加配置水箱液位計 ;
采用谷輪壓縮機 ;
TIC-A 風冷式采用套片式冷凝器，傳熱效果佳，散熱快，無需提供冷卻水 ;
改為歐規安全回路型時，機型后加注“CE”
Cooling temperature range 5C-35C;
Stainless steel insulated water tank, anti-icing protection device;
R22 refrigerant, good refrigeration effect;
The cryogenic circuit is controlled by high and low pressure switches.
Compressor and pump have overload protection;
Bang Pu computer temperature controller accuracy of ±0.1C;
Easy to operate, simple structure, easy to maintain;
Low pressure pump is standard, medium pressure or high pressure pump can be selected;
Optional addition of tank level gauge;
Adopt grain rotary compressor;
TIC-A air-cooled using sleeve condenser, heat transfer effect is good, fast heat dissipation, no need to provide cooling water;
When changing to EC safety loop type, add "CE" after the model

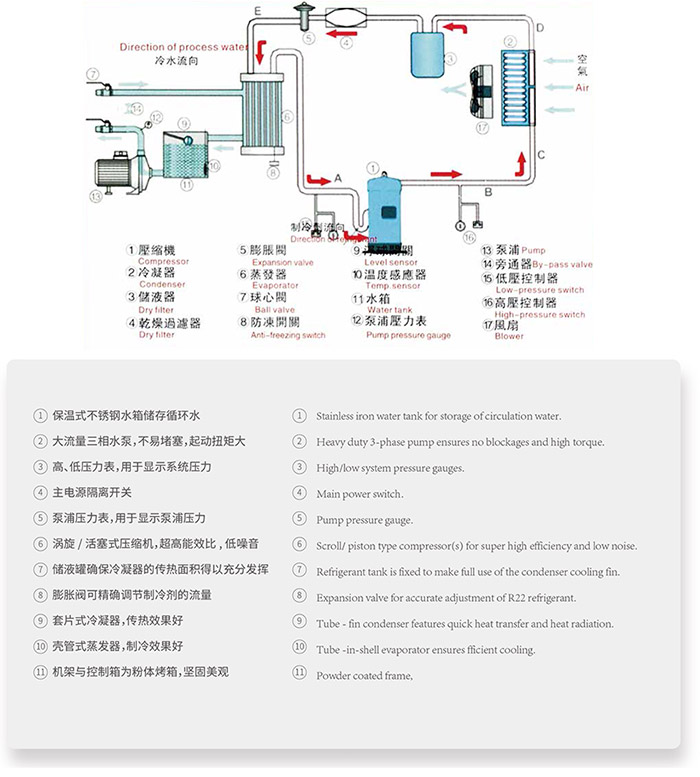

TIC-A 系列冰水機主要由壓縮機、冷凝機、熱力膨脹閥盒蒸發器四大部件組成，采用單級蒸氣壓縮制冷系統，利用制冷劑的氣液相互轉換，吸收盒釋放熱量的原理，達到制冷的效果。
TIC- A 系列開機后，壓縮機 (1) 開始工作，制冷劑在壓縮機的壓縮作用下變成高壓高溫氣體，往 A-B 的方向循環 ; 在 B-C-D過程，高壓高溫的制冷劑氣體通過冷凝器 (2)，與空氣發生熱交換，由氣態轉變?yōu)橐簯B(tài)，同時被空氣帶走熱量 ; D-E 過程，液態的高壓制冷劑通過熱力膨脹閥 (5)，壓力下降，部分制冷劑由液態轉變?yōu)闅鈶B(tài)，此時制冷劑為液態和氣態兩相混合的狀態 ;
E- A 過程中，制冷劑通過蒸發器 (6)，在蒸發器內與傳熱媒介發生熱交換，冷卻冷凍水到所需的溫度，滿足設定要求 ; 經蒸發器后的氣體制冷劑循環回到壓縮機，完成一次制冷循環。
TIC- A air- cooled water chillers include four main components, such as compressor, condenser, thermostatic expansion valve and evaporator.
The system adopts a single closed loop design for refrigeration system. Refrigerant is alternatively changed from gaseous to liquid state to absorb or release heat thus a cooling effect is achieved. When the machine is started, compressor starts working. Refrigerant is compressed into high pressure and high temperature gas in the process from A to B. In the process From B to C and D, this high pressure and high temperature gas is cooled when it is passing through the condenser and changed into liguid. Heat is taken away by the cooling air. In the process from D to E, the pressure of liquid refrigerant is reduced by expansion valve and a part of the refrigerant is changed from liquid to gaseous state. In the process from E to A, refrigerant absorbs the heat of process water in the evaporator and returns back to the compressor. This heat exchange process repeats until process water is cooled down to required temperature.

注：
1) 制冷能力是依據出水口溫度 12C，環境溫度 30°C 下測得 ;
2) 在 3φ，230V 時，壓縮機類型為活塞式 (TIC-3A~TIC-5A);
3) 制冷劑可選擇 R407C 環保型冷媒 ( 用 U 表示，例如 : TIC-5A-U);
4) 此泵浦為內銷及外銷東南亞標配，客戶可依需求換裝中壓泵浦，例如 : TIC-5A-P)，
也可換裝高壓泵浦 ( 用 HP 表示，例如 : TIC-5A-HP)，具體參數依次如上所示 ;
5) 該風冷式冷水機適用于環境溫度 35℃以下的使用條件 ;
6) 機器電壓可按客戶要求特殊訂購。
Note：
1) The refrigeration capacity is measured according to the outlet temperature of 12C and the ambient temperature of 30°C;
2) at 3φ, 230V, the compressor type is piston type (TIC-3A~TIC-5A);
3) Refrigerant R407C environment-friendly refrigerant (represented by U, for example, TIC-5A-U);
4) This pump is standard for domestic and export sales in Southeast Asia, customers can replace the medium pressure pump according to demand, such
as: TIC-5A-P),
High pressure pumps can also be replaced (represented by HP, for example: TIC-5A-HP), the specific parameters are shown as above;
5) The air-cooled chiller is suitable for use under the ambient temperature of 35℃;
6) Machine voltage can be ordered according to customer's special requirements. |
|
