TICC-W series central water-cooled chillers adopt Germanmade BITZER with twin screw compressors,models with one or two compressors,
suitable for using R22，R407 and R134a refrigerants. High efficiency condenser and evaporator have manufactured under national"BR1"
standard. Featuring stable heat exchange and ease of maintenance advanced contriller with built- -in microprocessor which gives better perfor?mance than single chip based unit.
德國制半密閉式雙螺桿壓縮機，軸承壽命長，可確保長時間運轉 ;
壓縮機多級能量調節，可依客戶需求作調整以達到節能的效果 ;
冷凝器與蒸發器均符合國家要求，高熱交換性能，且維修保養方便 ;
控制器擴通性能良好，可方便硬件及程序的擴展與升級 ;
Watchdog 技術使微電腦控制器的硬件組件具有自我診斷能力，能自動檢測故障 ;
配備穩定性高的記憶本，512K 的程式存儲容量及 128K 的斷電數據保存容量，可大量存儲資料且不會流失 ;
獨特的螢幕保護系統使觸控屏壽命可達十年以上 ;
故障查詢功能與故障統計功能可以按故障序號、故障次數和發生時間來分析故障發生原因，以便加以改善 ;
可隨時查看各點實際溫度作修改設定，此外尚可顯示一小時及一天的溫度曲錢 ;
具有遠端遙控開關機功能，可實現一次定時開關機及每周定時開關機的應用，每天最多可設定開關機達 3 次 ;
支援多語言在織切換。
German-made twin screw compressor,long service life to ensure can make sure continuous operation.
Two energy saving modes are designed to meet customers requirements.
Evaporator and condenser built strictly according to national standards.
Extendability of the controller makes upgrade of both hardware and software more easier.
"Watchdog" technology makes microprocessor able to automatically diagnose and solve the problems.
512K memory for programs and 128K off-power data storage.
Touch screen panel.
System alarm text.
Able to monitor the setting of actual temp and display temp trend in hours or in daily.
Remote control function turns on/off the machine according to preset timer.
Support multi -language switch.
1) 參數測試條件 : 冷凍水入口溫度 12°C, 出口溫度 7°C，冷水入口 30。C，出口溫度 35 °C;
2) 噪音測試距主機正前方 1m，高 1 .5;
3) 可依客戶工程所需，選配無段容調功能 ;
4) 如有特殊要求，訂貨前請提出要求規范 ;
5)“S”代表單壓縮機。

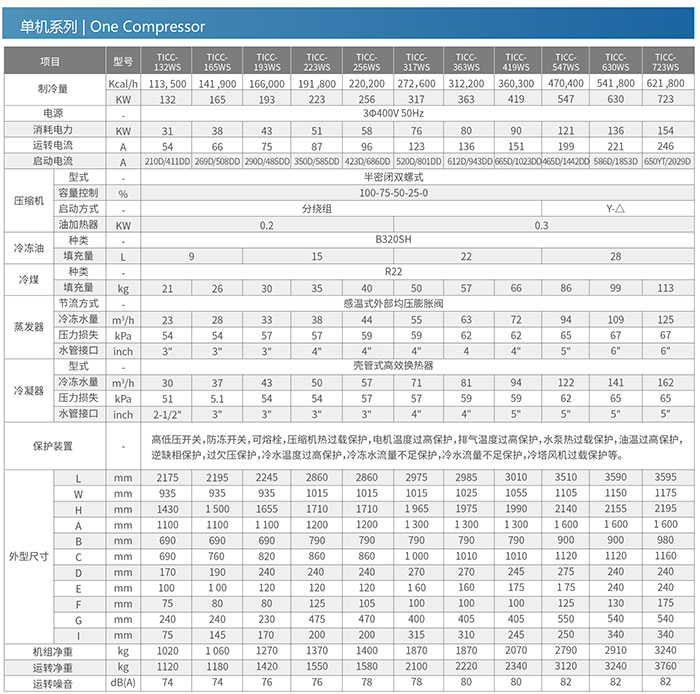

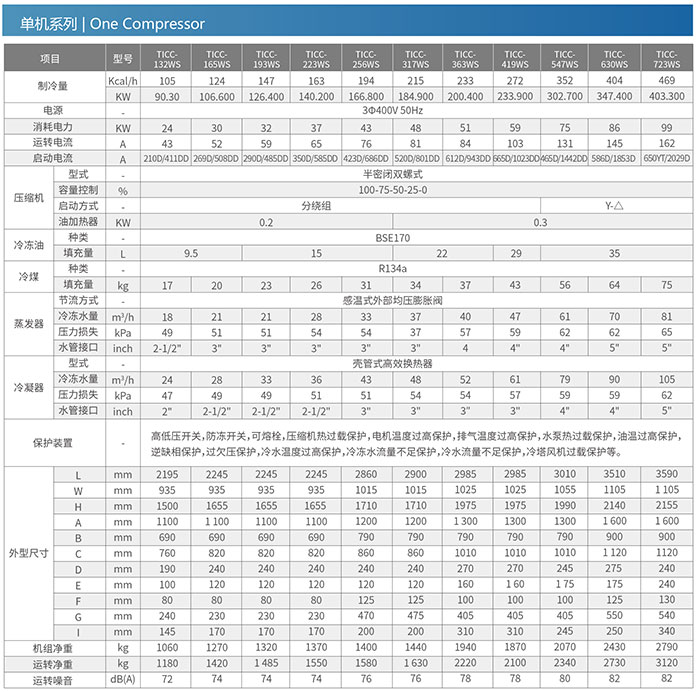

1)The refrigerant capacity is tested under conditions that process water inlet temp.is at 12C，process water outlet temp.is ai 7C,cooling water inlet temp.is at
30"C and cooling water outlet temp.is at 35"C.The contamination status is on 0.0001M20C/W.
2)The noise level is tested on one meter in front of the machine and 1.5 meter in height.
3)The function of un-adjustable refrigerant flow can be selected.
4)Please inform the special requirements to us before giving and order.
5) "S" stands for single compressor.
1) 參數測試條件 : 冷凍水入口溫度 12°C, 出口溫度 7°C，冷水入口 30。C，出口溫度 35 °C;
2) 噪音測試距主機正前方 1m，高 1 .5;
3) 可依客戶工程所需，選配無段容調功能 ;
4) 如有特殊要求，訂貨前請提出要求規范 ;
5)“S”代表單壓縮機。
1)The refrigerant capacity is tested under conditions that process water inlet temp.is at 12C，process water outlet temp.is ai 7C,cooling water inlet temp.is at
30"C and cooling water outlet temp.is at 35"C.The contamination status is on 0.0001M20C/W.
2)The noise level is tested on one meter in front of the machine and 1.5 meter in height.
3)The function of un-adjustable refrigerant flow can be selected.
4)Please inform the special requirements to us before giving and order.
5) "S" stands for single compressor.
注：1) 參數測試條件 : 冷凍水入口溫度 12°C, 出口溫度 7°C，冷水入口 30。C，出口溫度 35 °C;
2) 噪音測試距主機正前方 1m，高 1 .5;
3) 可依客戶工程所需，選配無段容調功能 ;
4) 如有特殊要求，訂貨前請提出要求規范 ;
5)“D”代表雙壓縮機。

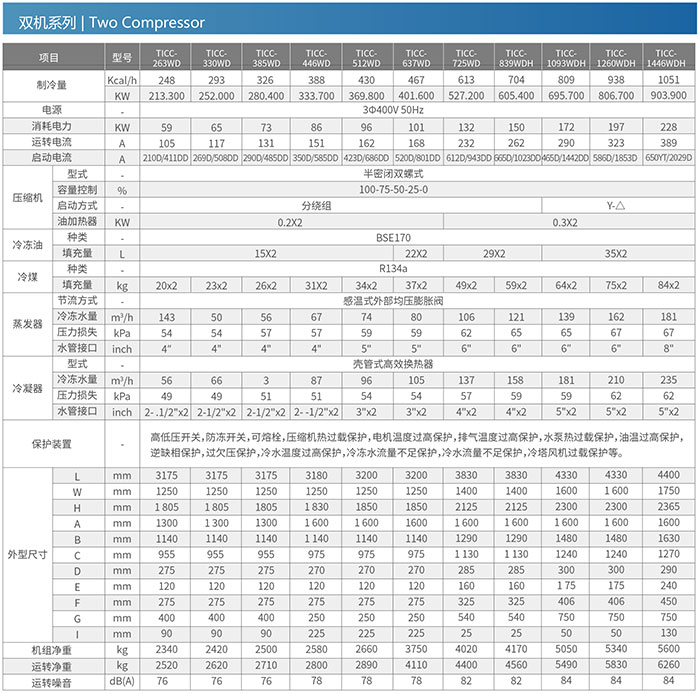

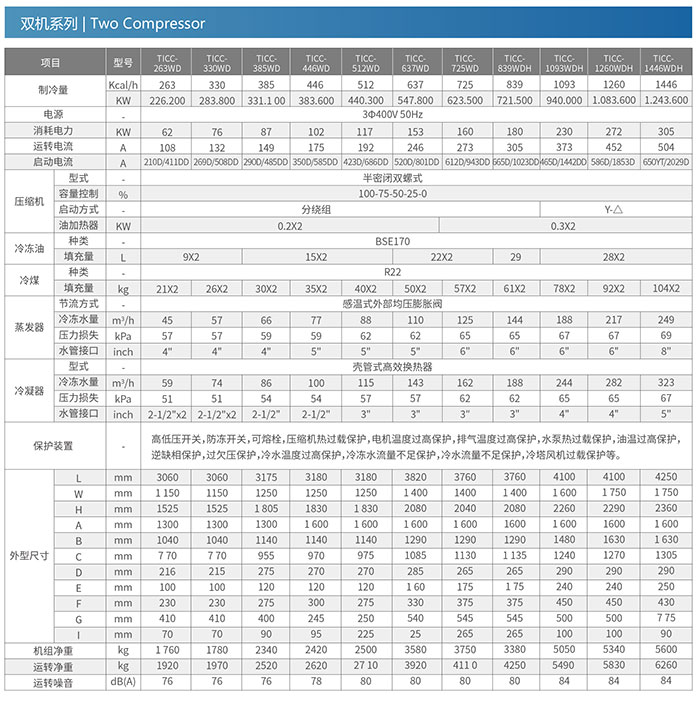

Note: 1)The refrigerant capacity is tested under conditions that process water inlet temp.is at 12C，process water outlet temp.is ai 7C,cooling water inlet temp.is at
30"C and cooling water outlet temp.is at 35"C.The contamination status is on 0.0001M20C/W.
2)The noise level is tested on one meter in front of the machine and 1.5 meter in height.
3)The function of un-adjustable refrigerant flow can be selected.
4)Please inform the special requirements to us before giving and order.
5) "D" stands for double compressor.
1) 參數測試條件 : 冷凍水入口溫度 12°C, 出口溫度 7°C，冷水入口 30°C;，出口溫度 35 °C;
2) 噪音測試距主機正前方 1m，高 1 .5;
3) 可依客戶工程所需，選配無段容調功能 ;
4) 如有特殊要求，訂貨前請提出要求規范 ;
5)“D”代表雙壓縮機。
1)The refrigerant capacity is tested under conditions that process water inlet temp.is at 12C，process water outlet temp.is ai 7C,
cooling water inlet temp.is at 30"C and cooling water outlet temp.is at 35"C.The contamination status is on 0.0001M20C/W.
2)The noise level is tested on one meter in front of the machine and 1.5 meter in height.
3)The function of un-adjustable refrigerant flow can be selected.
4)Please inform the special requirements to us before giving and order.
5) "D" stands for double compressor.
|
